Description

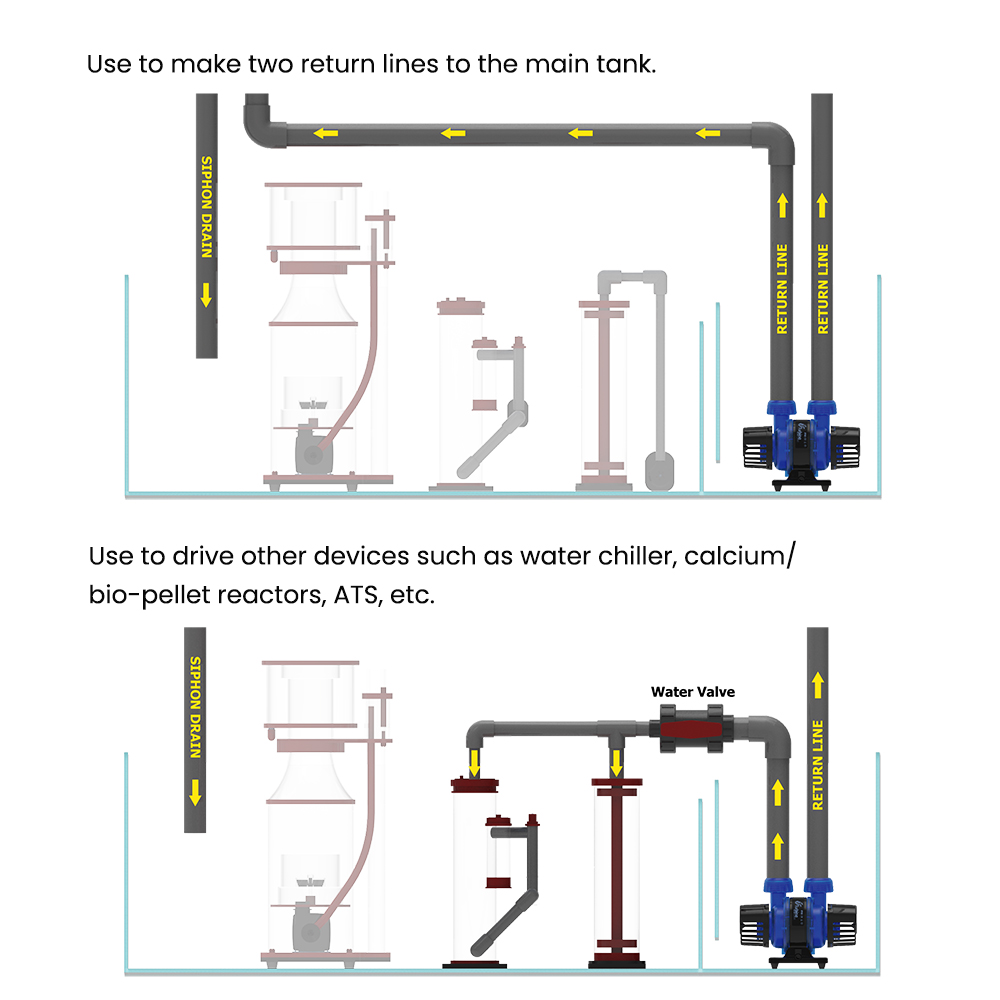

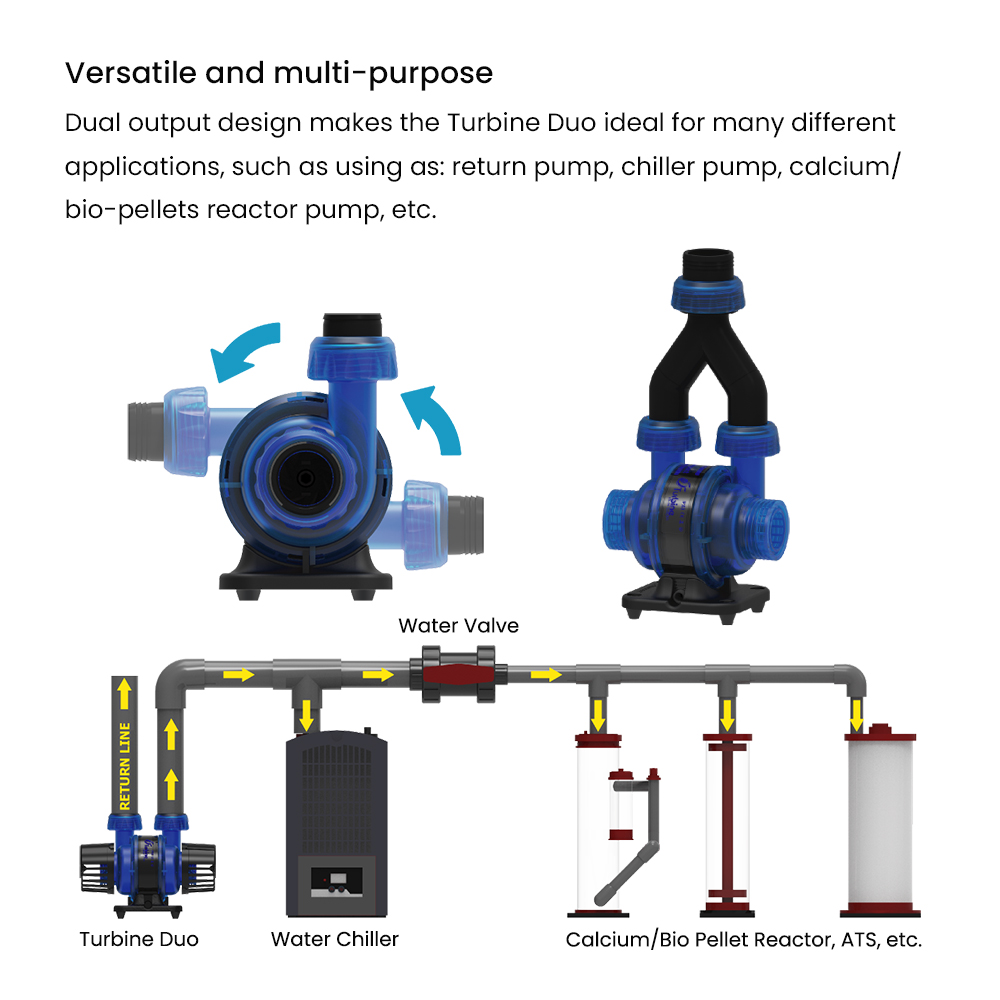

Multiple different configurations allow the Turbine Duo to adapt to many different scenarios. If you want to feed a manifold and your aquarium from a single pump, the Dual output configuration is perfect. Your aquarium will always get the same flow, even if you change the flow rate through the equipment connected to the manifold. If you just need a lot of flow, attach the Duo to Single output adapter for increased flow through a single pipe. The final configuration works great if you are tight on space, you can actually remove one of the volutes, and by attaching the block off plate, you effectively have a compact single output pump.
Key Features

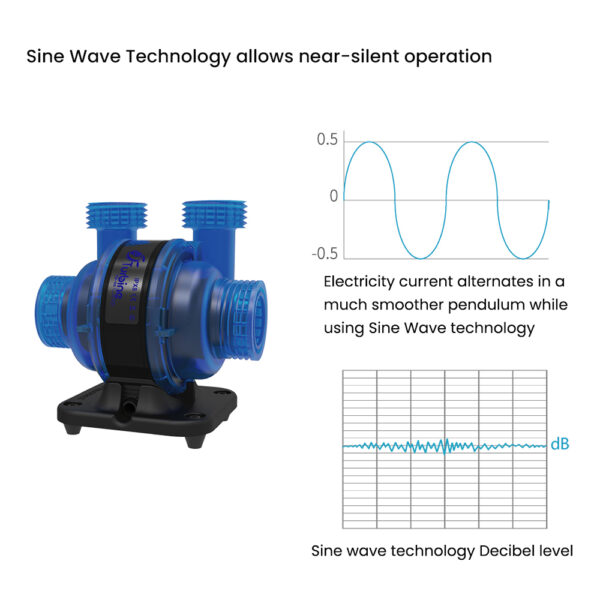

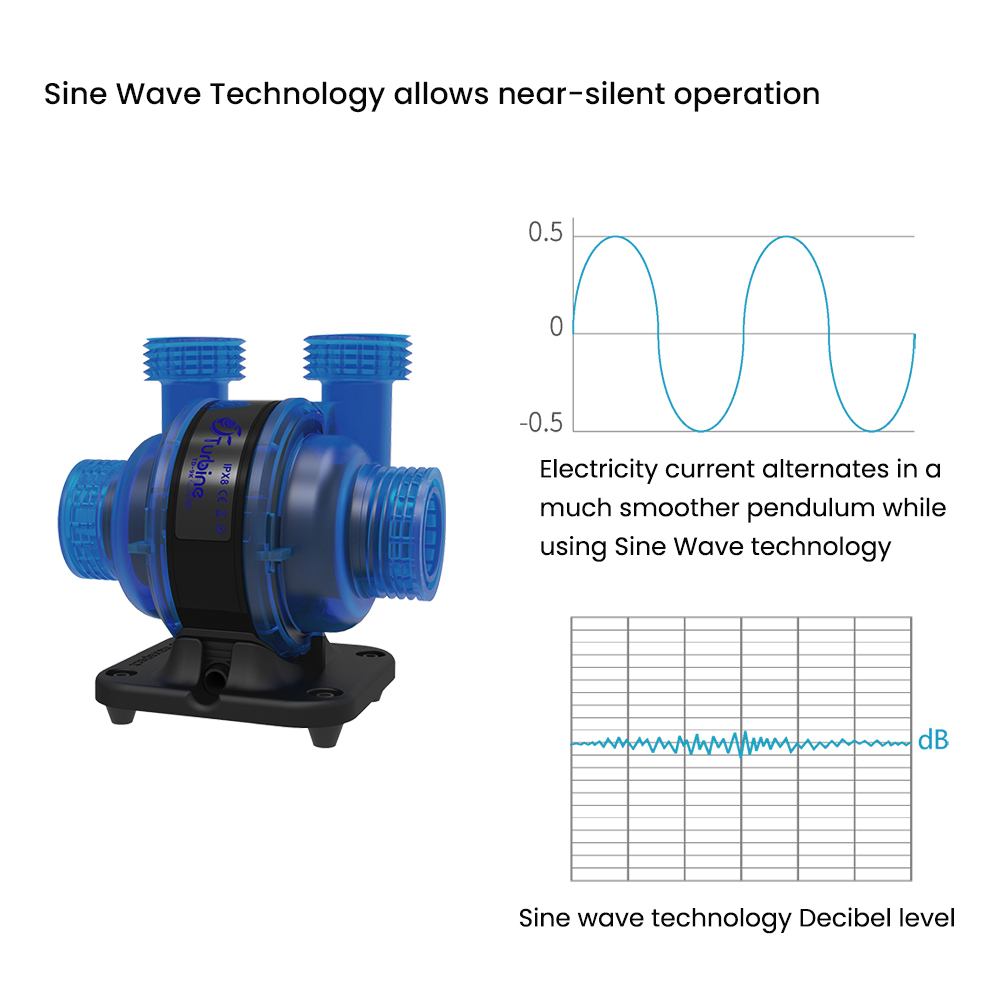

- Silent operation
- Multi-directional outputs
- Multiple different configurations

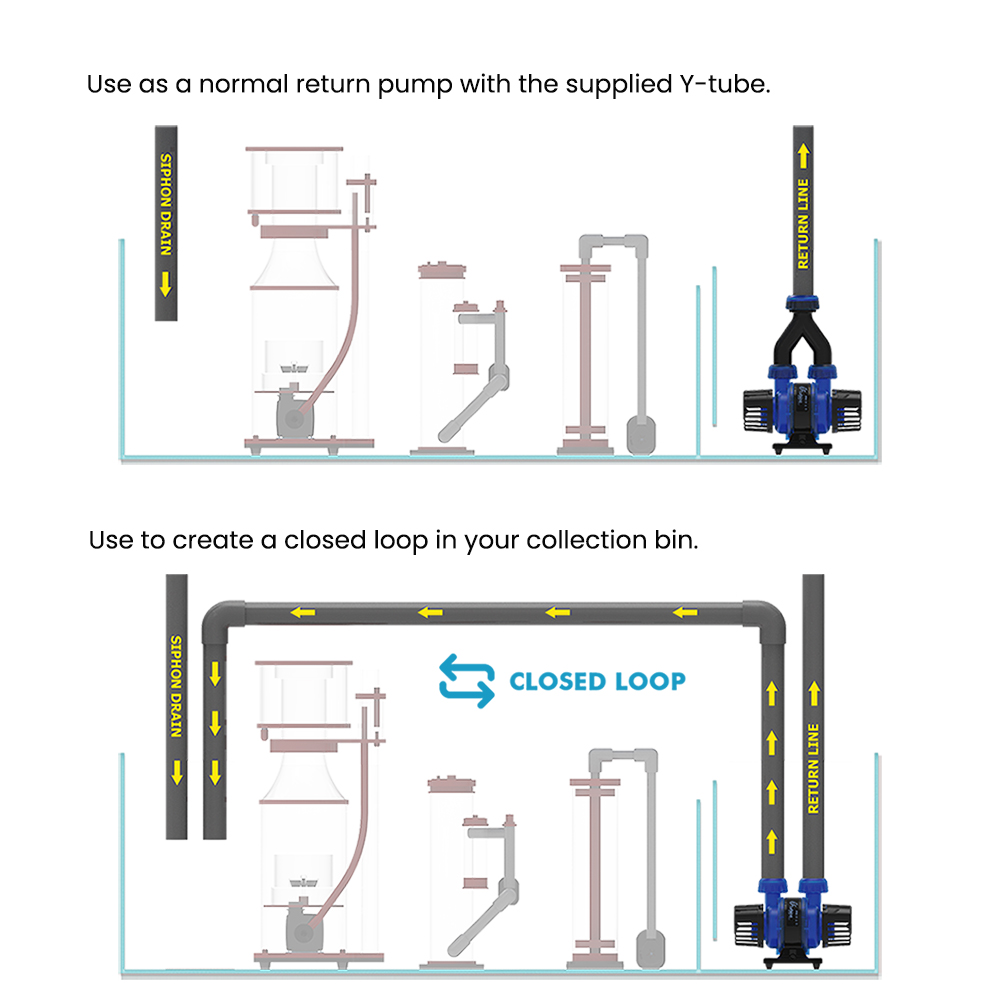

- Perfect for returns or closed-loops
- Two individual intakes and outputs
- Includes multiple adapters and accessories
- Compatible with ICV6 Controller & Syna-G App

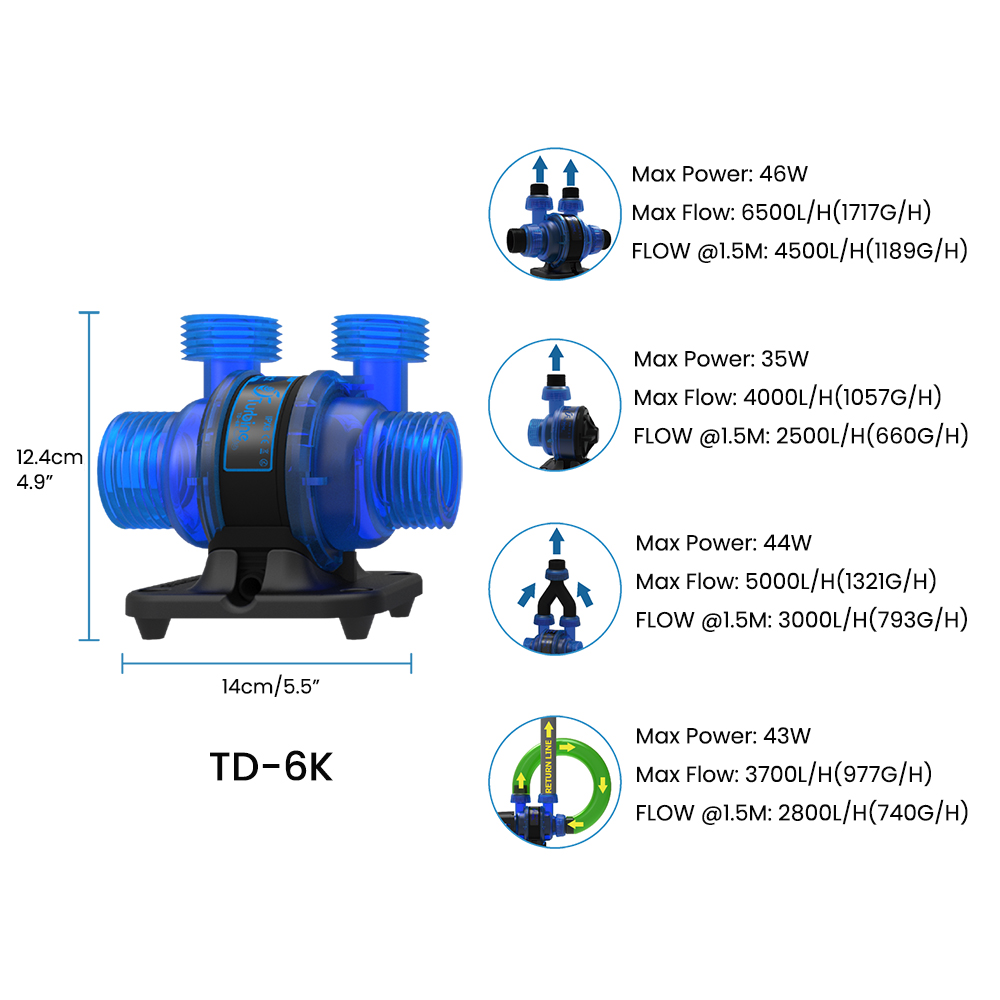

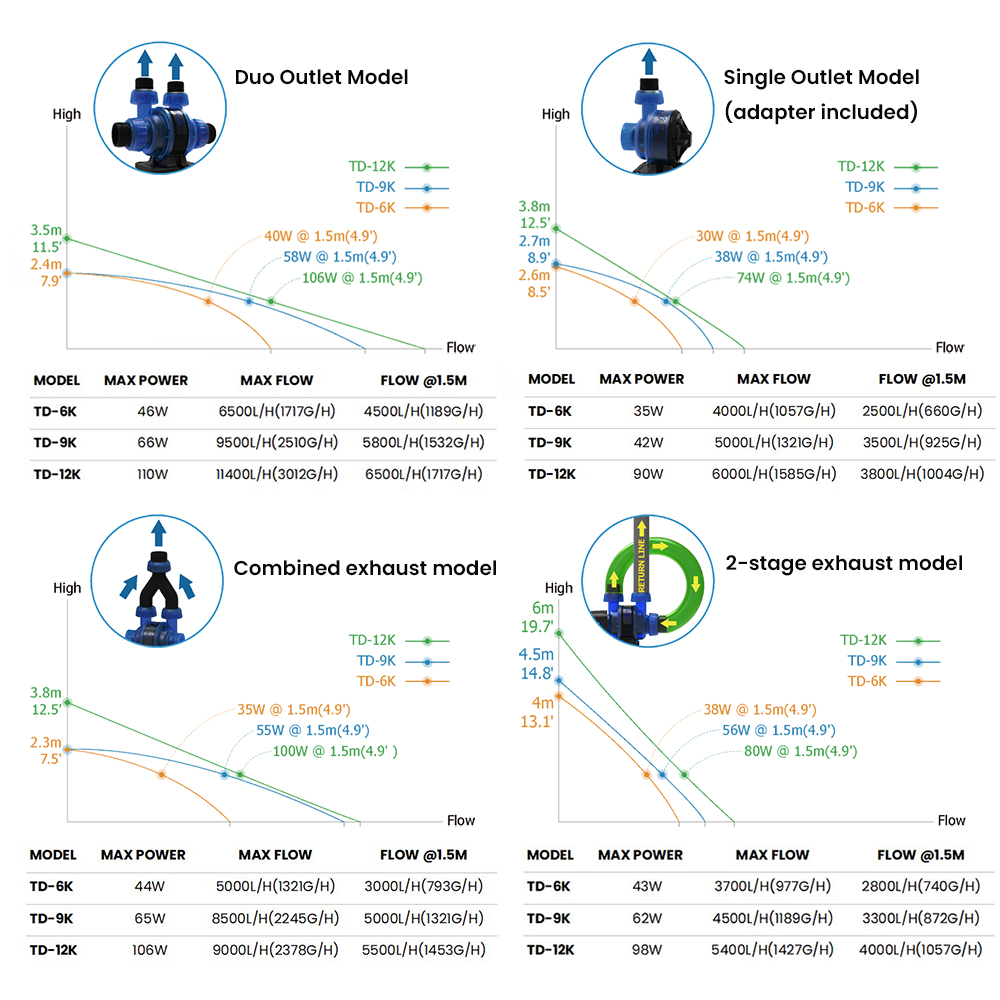

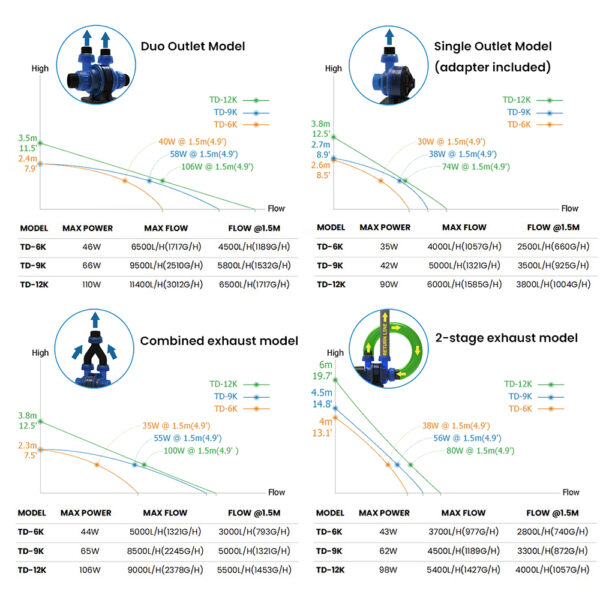

Specification-TD-6K
Duo Outlet Model
Max Power: 46WMax Flow: 6500L/H(1717G/H)FLOW @1.5M: 4500L/H(1189G/H)
Single Outlet Model (adapter included)
Max Power: 35WMax Flow: 4000L/H(1057G/H)FLOW @1.5M: 2500L/H(660G/H)
Combined Exhaust Model
Max Power: 44WMax Flow: 5000L/H(1321G/H)FLOW @1.5M: 3000L/H(793G/H)
2-Stage Exhaust Model
Max Power: 43WMax Flow: 3700L/H(977G/H)FLOW @1.5M: 2800L/H(740G/H)
Specification-TD-9K
Duo Outlet Model
Max Power: 66WMax Flow: 9500L/H(2510G/H)FLOW @1.5M: 5800L/H(1532G/H)
Single Outlet Model (adapter included)
Max Power: 42WMax Flow: 5000L/H(1321G/H)FLOW @1.5M: 3500L/H(925G/H)
Combined Exhaust Model
Max Power: 65WMax Flow: 8500L/H(2245G/H)FLOW @1.5M: 5000L/H(1321G/H)
2-Stage Exhaust Model
Max Power: 62WMax Flow: 4500L/H(1189G/H) FLOW @1.5M: 3300L/H(872G/H)
Specification-TD-12K
Duo Outlet Model
Max Power: 110WMax Flow: 11400L/H(3012G/H)FLOW @1.5M: 6500L/H(1717G/H)
Single Outlet Model (adapter included)
Max Power: 90WMax Flow: 6000L/H(1585G/H)FLOW @1.5M: 3800L/H(1004G/H)
Combined Exhaust Model
Max Power: 106WMax Flow: 9000L/H(2378G/H)FLOW @1.5M: 5500L/H(1453G/H)
2-Stage Exhaust Model
Max Power: 98WMax Flow: 5400L/H(1427G/H)FLOW @1.5M: 4000L/H(1057G/H)
